MNT Quasar 6490 Processor Module

Well Rested: MNT Quasar 6490 Brings Quick Sleep/Resume to Pocket Reform.

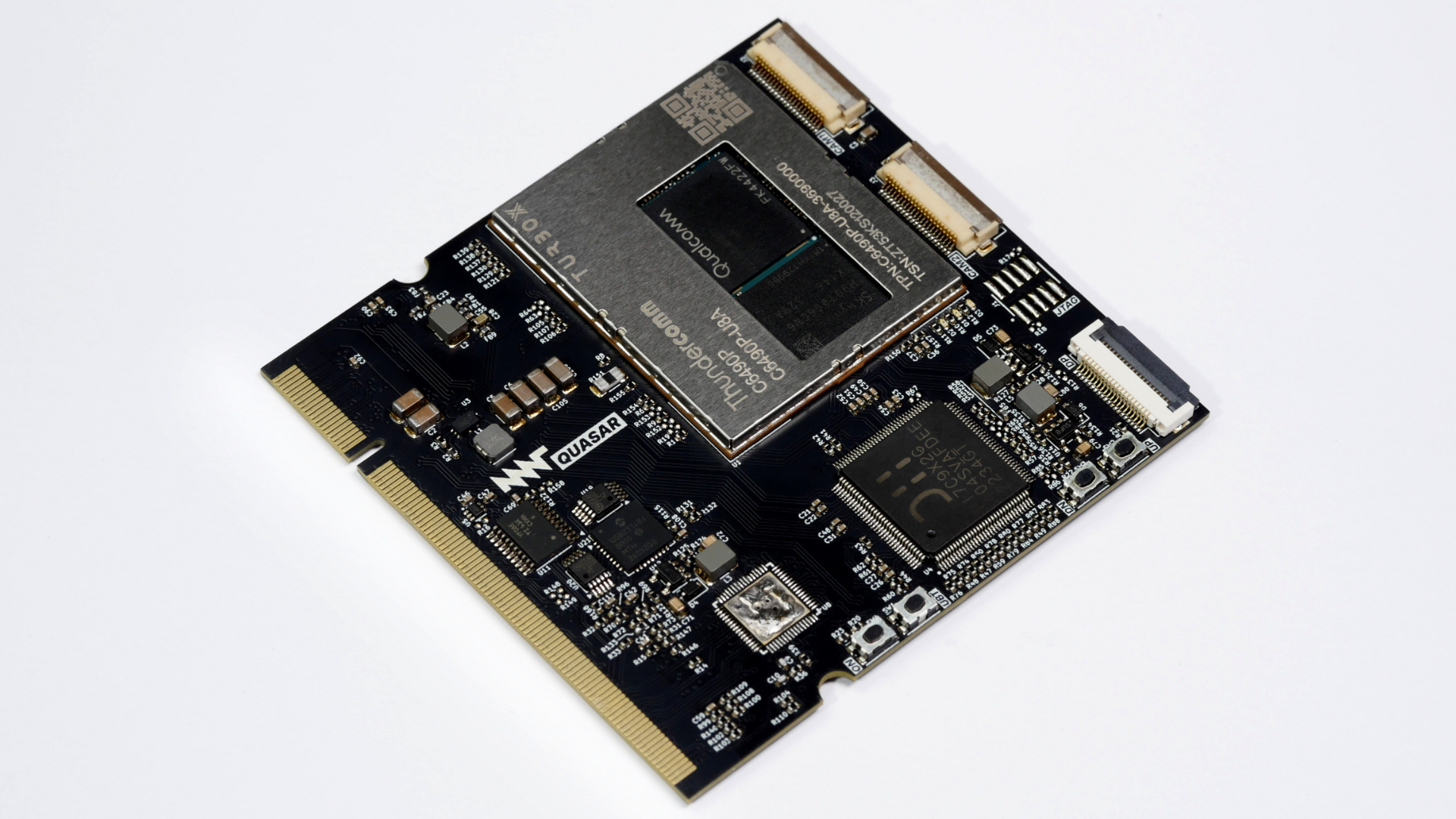

It's here: the MNT Quasar with Qualcomm QCS6490 (Thundercomm C6490P) Processor Module that wakes up your Pocket Reform in a snap when you need it.

This new feature not only reduces battery consumption compared to lock screen mode—it also lets you pick up your work and fun projects exactly where you left off. Sleep/resume is particularly useful for non-stationary use of Pocket Reform during travels and commuting, between work meetings or university seminars, on your lunch or dinner break, or in case you forgot your power adapter and want to extend the run time without losing progress.

Quasar with QCS6490 dials up CPU and graphics speed while prolonging your battery runtime and letting Pocket Reform run less hot—thanks to the chip's 6nm process and advanced power management features.

The development of this open hardware module was funded by NLnet/NGI0 Core, and we thank Linaro for working with us on optimizing the Linux kernel and u-boot for it.

Main Benefits

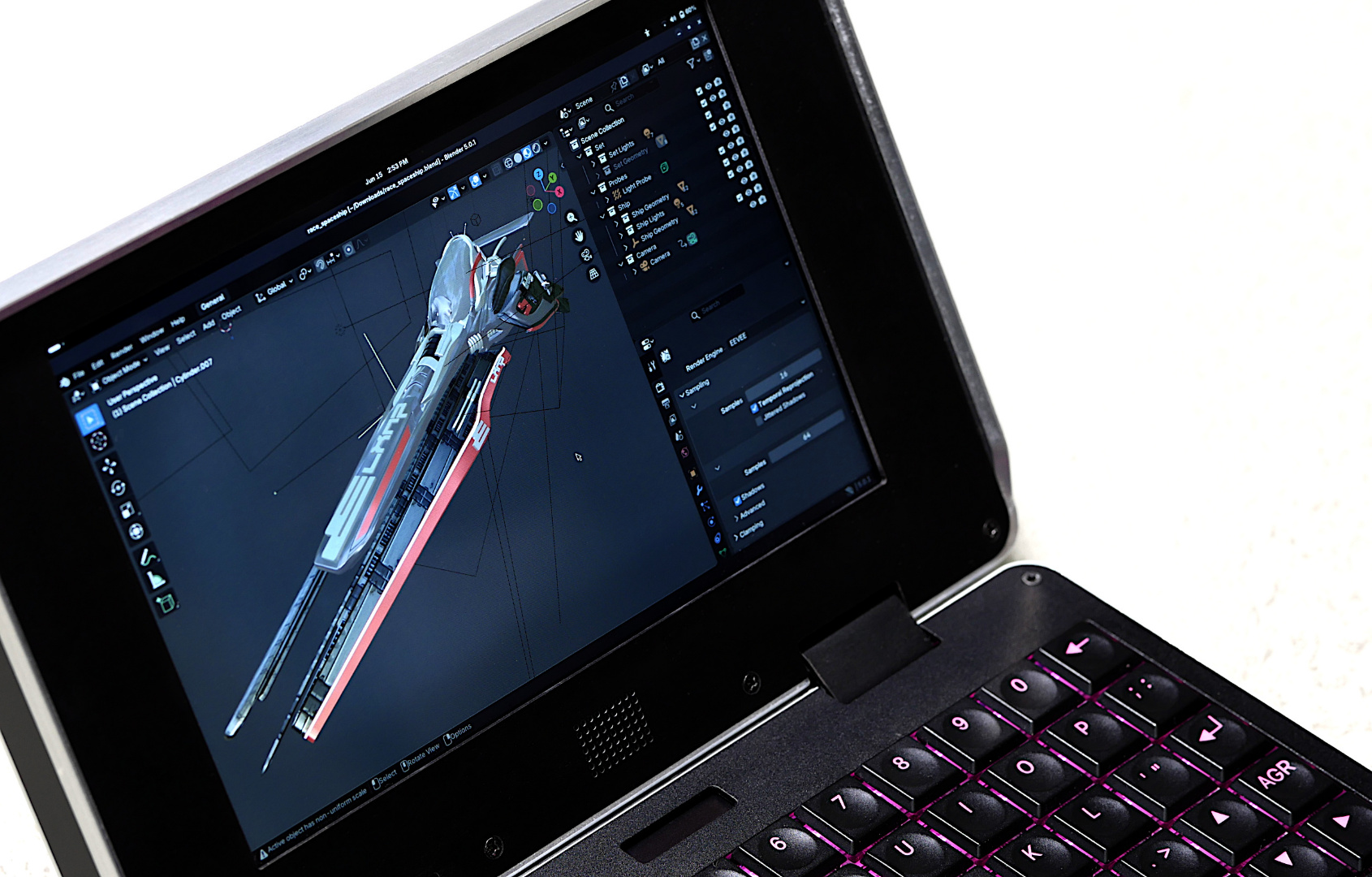

photo of MNT Pocket Reform with Blender open, running on Quasar

In a Nutshell

  • Energy efficient
  • Doesn't get too hot
  • 8 GB RAM
  • Great CPU and GPU performance
  • Sleep mode (suspend to RAM)
  • Run time:
    • Up to 24h of sleep/suspend
    • Up to 5h of browsing on Wi-Fi (Firefox, Intel AX210 card)

Use Cases

  • Academia/research, writing, mobile office
  • Software development
  • Light gaming with OpenGL 4.6+Vulkan 1.4
  • Open source CAD/Blender/multimedia

Drawbacks

  • No HDMI output
  • External monitor support via USB-C DisplayPort Alt Mode requires Mainboard 2.0

Benchmarks

Bar chart comparing the CPU performance stats of 4 MNT processor modules

Bar chart comparing the GPU performance stats of 4 processor modules

Detailed Specs

  • CPU: Kryo 670 CPU (8 cores)
    • 1x Kryo GoldPlus (ARM Cortex-A78 based) @ 2.7 GHz
    • 3x Kryo Gold (ARM Cortex-A78 based) @ 2.4 GHz
    • 4x Kryo Silver (ARM Cortex-A55 based) @ 1.9 GHz
  • GPU: Adreno 643 (OpenGL 4.6 and Vulkan 1.4)
  • RAM: 8 GB LPDDR4x
  • Storage: 128 GB UFS2.2 (uMCP)
  • 3x PCIe 3.0 (1x usable on Pocket Reform mainboard, 1x for Wi-Fi module)
  • USB 3.0 + USB 2.0
  • 1x MIPI-DSI for Pocket Reform Display
  • 1x DisplayPort on FPC, for USB-C Alt Mode (requires Pocket Reform Mainboard 2.0)
  • 1 GBit/s Ethernet
  • EL2 and KVM for virtual machines are supported

Compatibility

The MNT Quasar 6490 is compatible with our MNT Pocket Reform mini laptop.

This module will also be compatible with MNT Reform and MNT Reform Next, but some extras enabling their full use are still in development and not included in this offer. For MNT Reform, this means a custom heatsink and for both MNT Reform and MNT Reform Next, adapters for either external HDMI or DisplayPort to work.

We'll update this text and the buying options as soon as these add-ons are done. If you want to stay in the loop, please check our monthly news updates and our Fediverse.

In the Box

  • MNT Quasar 6490 Processor Module (8 GB RAM + 128GB UFS) for MNT Pocket Reform

Please note: The first batch will be produced as soon as 25 units are sold and the lead time from then on is around 5-6 months. We'll update this note accordingly, but you can also check our monthly news updates and our Fediverse account to stay in the loop.

Support

Price

569.00
