Pocket Reform Upgrade Bundle with CM4 A311D

MNT Pocket Reform Upgrade Bundle

An Upgrade Bundle to Your MNT Pocket Reform.

With this upgrade bundle, MNT Pocket Reform has more power, more storage, and more bandwidth.

Choose Your CPU Module

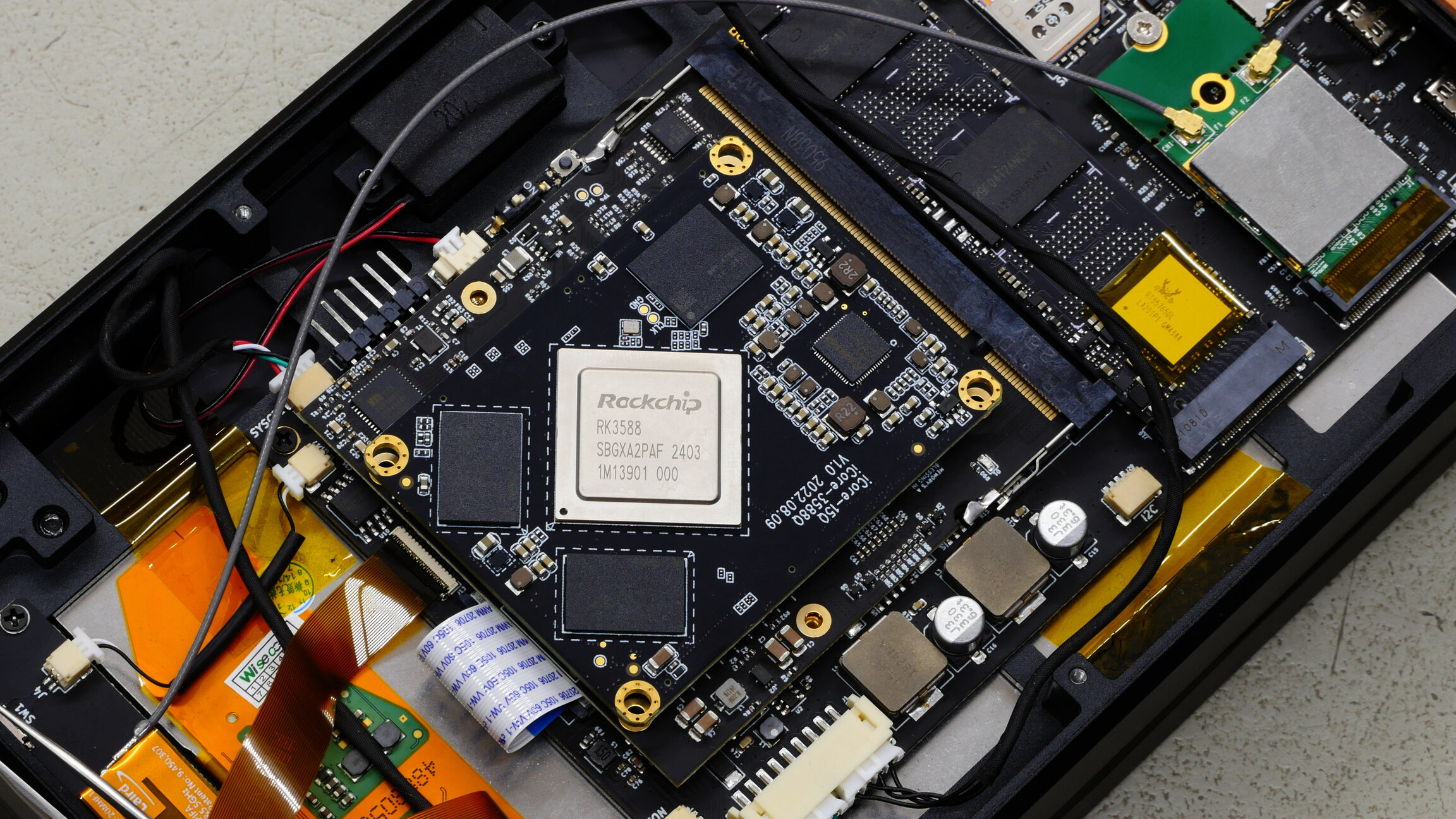

1. MNT RCORE (Rockchip RK3588)

MNT RCORE with RK3588 is the most powerful octa-core Processor Module option for MNT Pocket Reform and the right choice if you desire the maximum in CPU and GPU performance as well as 16 or 32GB of RAM. The CPU features 8 cores: 4x fast Cortex-A76 and 4x efficient Cortex-A55. The integrated ARM Mali G610 MP4 GPU delivers OpenGL/ES 3.1 with the open source Panthor driver, with Vulkan in development.

RK3588 doesn't include any Wi-Fi out of the box. We recommend selecting the optional AsiaRF M27612-BU3 Wi-Fi module for 802.11ac connectivity (Mediatek MT7612U chipset with good Linux support).

In a Nutshell

Very fast CPU/GPU, 16/32GB RAM
Dual display capable
Fast PCIe 3.0+2.0 and USB 3.0

Use Cases

Software development
Open source CAD/media work
OpenGL 3.1 gaming and emulation

Drawbacks

Binary DDR and GPU firmware

2. RCM4-BPi (Amlogic A311D)

A311D is a solid, affordable choice for your MNT Pocket Reform — both in terms of CPU and GPU. This energy-efficient module offers a good tradeoff between price and performance. The CPU features 6 cores: 4x fast 2.2GHz Cortex-A73 and 2x efficient 1.8GHz Cortex-A53. The integrated ARM Mali G52 MP4 GPU delivers OpenGL/ES 3.1 with the open source Panfrost driver.

With our Wi-Fi bundle, you get much higher bandwidth (around 200 mbit/s versus 20-30 mbit/s with stock Wi-Fi). Improved reception versus stock antenna.

In a Nutshell

Fast CPU and GPU
Wi-Fi 5
Bluetooth 5.0

Use Cases

Programming
Web applications
OpenGL 3.1 gaming

Drawbacks

One display at a time (HDMI or internal)
USB 2.0
Binary firmware
Only 16 GB eMMC (doesn't work in U-Boot). Booting from a MicroSD is possible but slow. We recommend using an SSD for a reliable and fast boot process.

Detailed Specs

In the Box

CPU module of your choice
Optional: AsiaRF Wi-Fi card with MT7612U chipset and dual Ezurio FlexPIFA antennas
Optional: NVMe SSD Storage (M.2) 1 TB

Support

Manuals and Downloads
For more details on features of MNT Pocket Reform, read our News article.
For questions, updates and feedback, join the MNT Community or write us an email.
Head over to our FAQs if you have any questions regarding payment methods, import fees and warranty.
