MNT Reform RCORE RK3588 Processor Module

The hottest powerup for your MNT Reform.

MNT Reform RCORE with RK3588 is now the most powerful octa-core Processor Module option for MNT Reform. If you desire the maximum in CPU and GPU performance as well as RAM, this is your module.

RCORE's Rockchip RK3588 processor has solid Linux and Mesa mainline support thanks to the work of Collabora. Full Debian support will be available in the MNT Reform System Image.

Please note: This is the module upgrade for MNT Reform only. RK3588 for MNT Pocket Reform requires a different setup and can be bought here.

Main Benefits

4x performant ARM Cortex-A76 cores (up to 2.4GHz)
4x power-efficient ARM Cortex-A55 cores (1.8GHz)
Very fast CPU/GPU
16 or 32GB RAM
Dual display capable
Fast PCIe 3.0+2.0 and USB 3.0

Use Cases

Software development
Open source CAD/media work
OpenGL 3.1 gaming and emulation

Drawbacks

Binary DDR and GPU firmware

Detailed Specs

3MB shared L3 Cache
ARM Mali-G610 MP4 4-core GPU with open-source drivers (Panthor OpenGL 3.1, Vulkan support in development)
16GB or 32GB LPDDR4
128GB or 256GB eMMC Flash
Internal display driven by our STDP2600 based HDMI to eDP adapter (subject to change)
1 Gbit/s Ethernet

In the Box

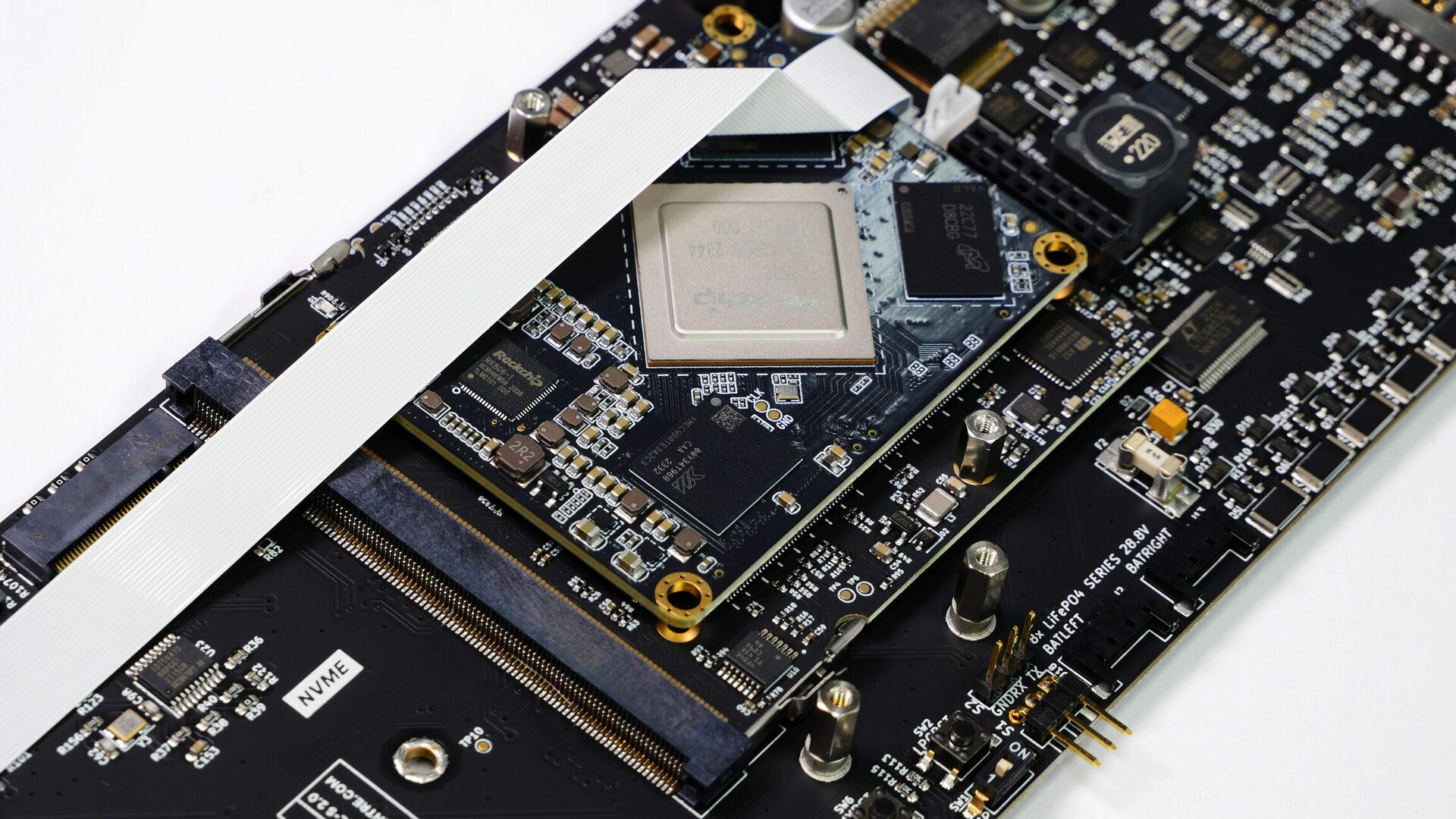

MNT RCORE Module with Firefly iCore-3588Q
Custom aluminum milled heatsink kit
MNT Reform Internal HDMI Display Adapter

Support

Manuals and Downloads
Modularity Comparison Table
iFixit Repair Guide
KiCAD Sources
For questions, updates and feedback, join the MNT Community or write us an email.
Head over to our FAQs if you have any questions regarding payment methods, import fees and warranty.
