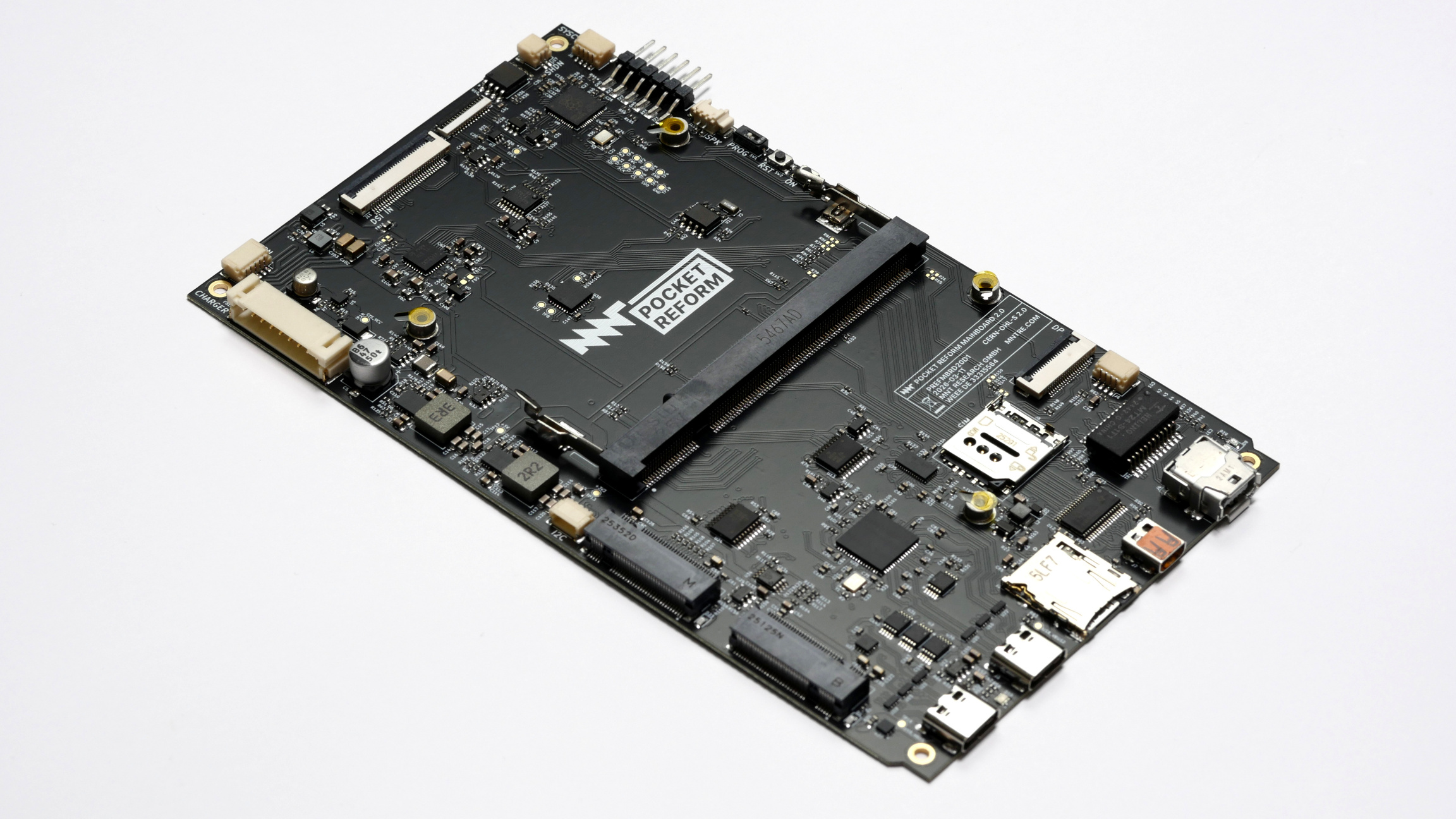

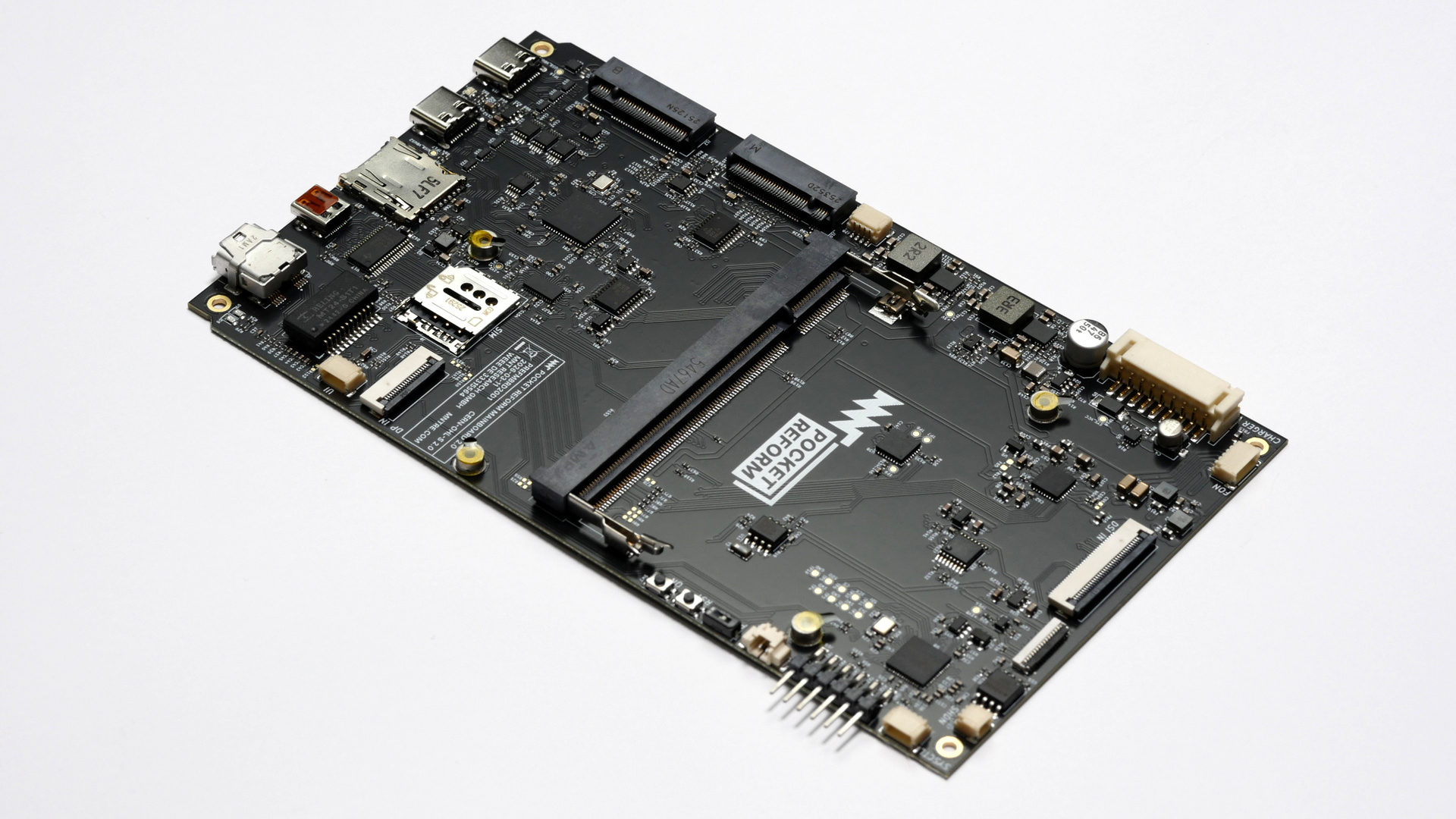

MNT Pocket Reform Mainboard 2.0

The Long-Awaited Upgrade For Your MNT Pocket Reform Mini Laptop Is Finally Here.

With this new version 2.0 of the MNT Pocket Reform Mainboard, you get a modernized power system adapted from the MNT Reform Next as well as more ports, more stability, more everything. A detailed list of features (incl. changes) can be found below.

The Pocket Reform Mainboard 2.0 is not just an upgrade, it has a lot more to offer. Let's see:

Single Cable Desktop Docking

Combined with processor modules such as RCORE/RK3588, the MNT Pocket Reform Mainboard 2.0 supports DisplayPort Alt-Mode, USB, and Power/Charging over the same USB-C cable. You can also connect a second external monitor via Micro-HDMI.

Advanced Hacking Comfort

Flash firmware and debug the System Controller, USB bootloaders, and the serial console (with built-in USB-UART converter)—without opening the case. All these functions can be digitally switched to the USB-C ports on demand.

Pocket Reform Upgrade

You can upgrade your Pocket Reform or use the Mainboard 2.0 as a standalone single board computer with the new automatic charger module bypass and integrated power button. Add any of our processor modules plus a USB-C power supply and you're good to go.

Note: If you ordered an MNT Pocket Reform laptop after 2026-04-28 and it hasn't been shipped yet, it will automatically contain the latest 2.0 version.

Features

  • Power directly via USB-C PD (new automatic bypass) or combine with MNT Pocket Reform Charger Module for battery powered operation.
  • Modernized power system and DC-DCs adapted from MNT Reform Next.
  • Cascading USB muxes that can be switched by System Controller (with UI on keyboard OLED).
  • Fully Open Source Hardware design with all KiCAD sources published under CERN OHL, and open source firmware
  • Size: 15cm x 9.3cm (15cm x 8.8cm without UART pins overhang)

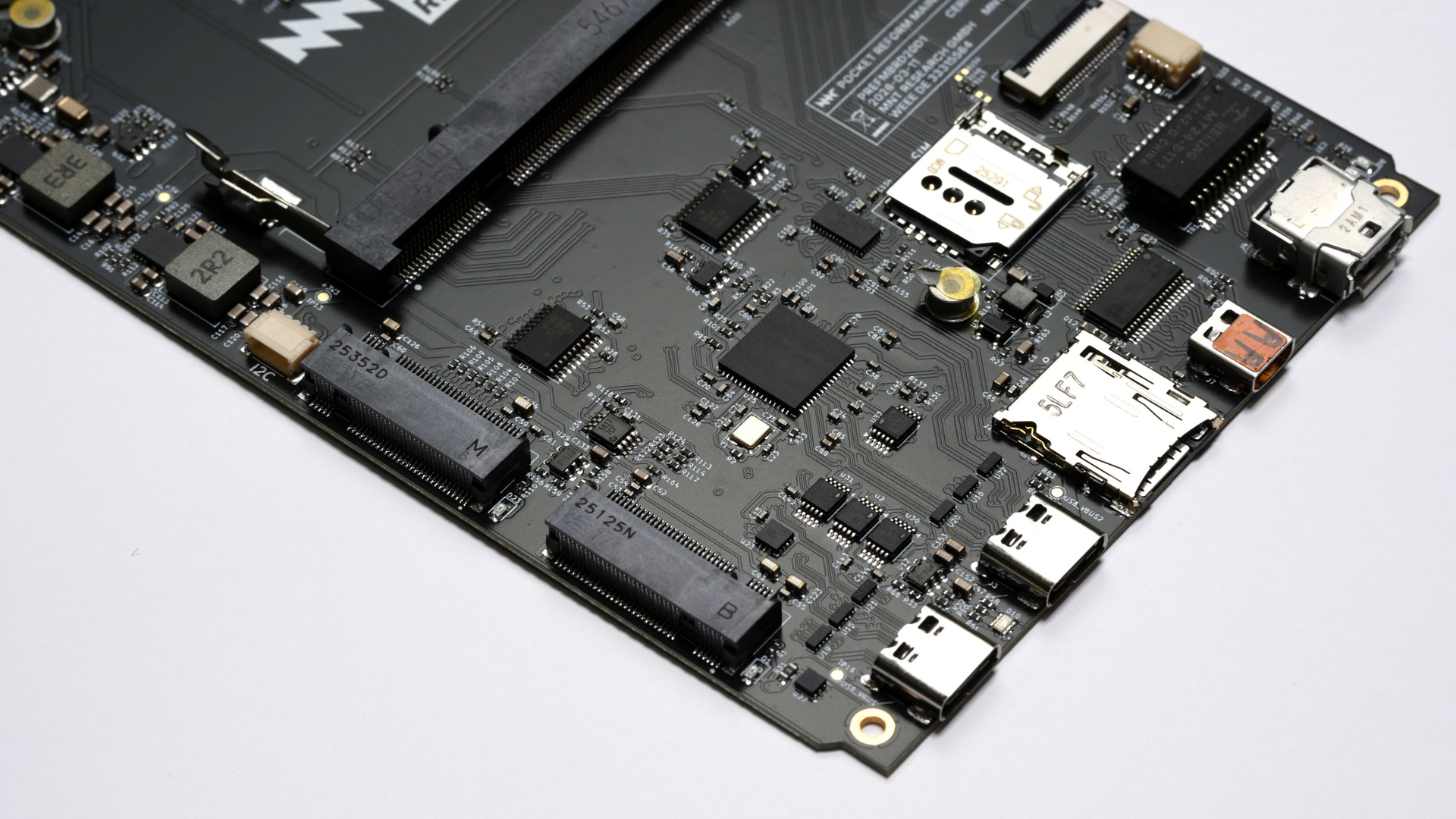

Ports

  • SuperSpeed USB-C port with PD and new DisplayPort Alt-Mode support
    • Can mux processor serial console 1 with built-in USB-UART
  • Additional SuperSpeed USB-C port
    • Can mux RP2040 System Controller USB device for firmware programming or live SC UART interaction (default on unflashed board)
    • Can mux processor USB port 2, used for EDL on Qualcomm modules, Rockchip USB Loader on RCORE
  • MicroSD slot
  • MicroHDMI port (new: through-hole part for improved robustness)
  • Ix Industrial port for Gigabit Ethernet (works with passive adapter to RJ-45)

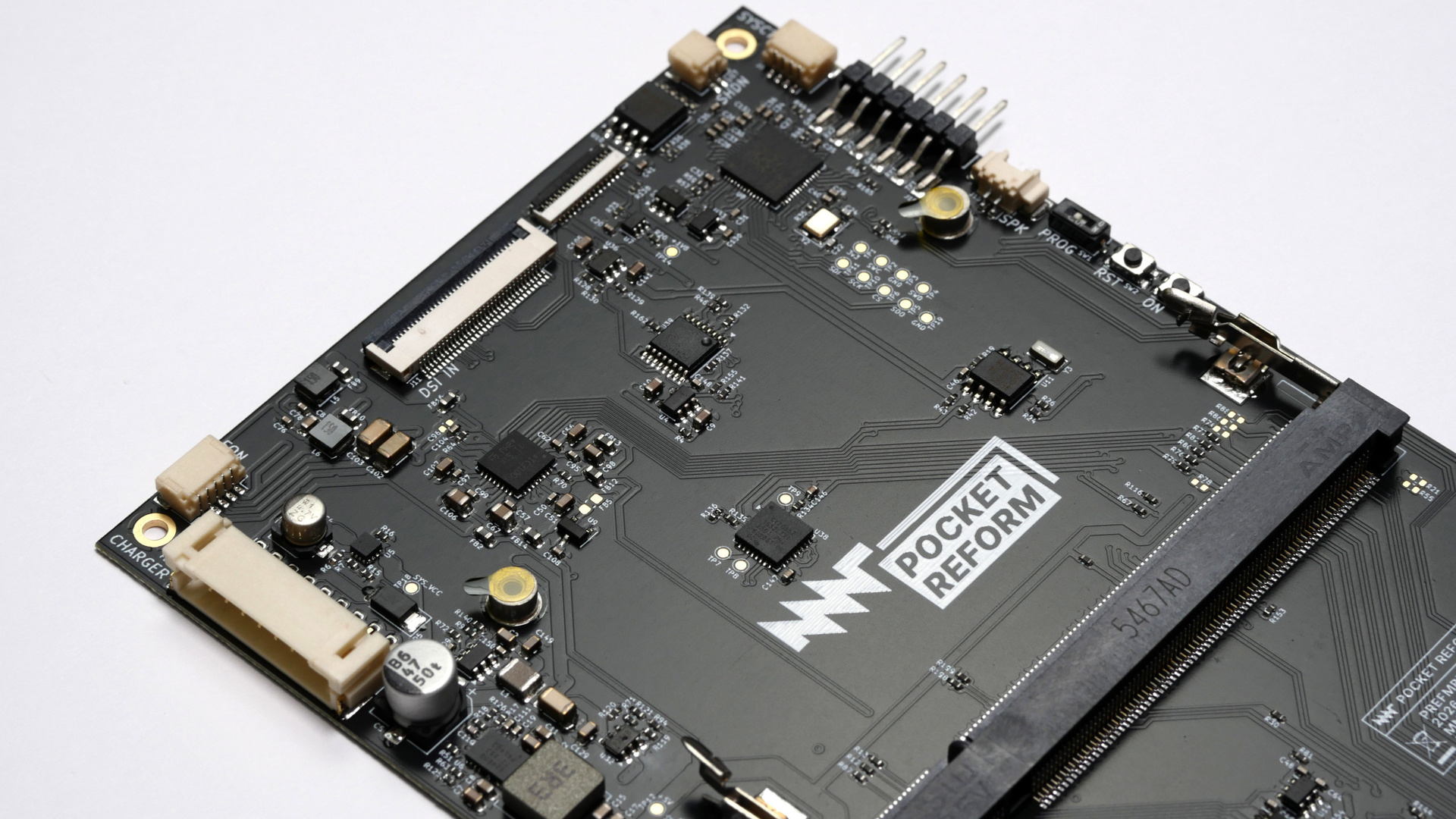

Internal connectors

  • 200-pin MNT (Pocket) Reform Processor Module slot
  • MIPI-DSI connector for 7 inch display
  • Mono speaker connector
  • 9-pin JST-PH power header for Charger Module
  • Stereo headset and standby switch JST-SH connectors for Headset/Switch Board
  • 4-pin JST-SH headers for:
    • Processor I2C bus
    • USB (for keyboard in Pocket Reform)
    • System Controller UART (for keyboard in Pocket Reform)
  • M.2 WWAN module slot (USB 2.0) with MicroSIM card tray
  • M.2 PCIe slot for NVMe SSD (up to 2280 size, 1x lane)

Stability improvements

  • New 5V buck (from Reform Next) with lower input voltage threshold
  • New 3v3 buck (from Reform Next) with lower input voltage threshold
  • Prioritized 5V power for the SOM:
  • New current limiter for 5V consumed by USB devices
  • New current limiter for 3V3 rail
  • Improved signal integrity: fixed stackup and recalculated differential pairs
  • RP2040 layout improvements

Quality of Life Improvements

  • Displayport Alt-Mode support on charging port with new USB-C mux (for selected processors like RK3588, Quasar)
  • New "On" button on the board
  • Moved RGB LED indication to charger port
  • Through-hole replacement for Micro-HDMI port to prevent breakoff

Debugging and flashing improvements

  • Replaced SYSUSB internal USB-C port and jumpers with USB muxes
  • Diode for charger bypass (instead of jumpers): power without charger board
  • Wired up XSWITCH / FASTBOOT to System Controller, to enable SoC's USB bootloader dynamically
  • USB-UART muxable to first USB-C
  • SC (RP2040) USB muxable to secondary USB-C (default, for flashing)
  • USB loader/EDL muxable to secondary USB-C, bypassing USB hub

Misc

  • Better/more available standby 3V3 buck
  • Removed D11
  • I2C bus TVS protection
  • USB PD VBUS input TVS
  • SWD test pads for RP2040
  • Improved display backlight PWM/enabled control from RP2040
  • More internal power switches (controlled by SC) for standby power saving
  • Smaller programming DIP switch to prevent breakoff

In the Box

  • MNT Pocket Reform Mainboard 2.0
  • 2x M.2 SSD/WWAN mounting screws

Support

Price

€199.00
