In a Nutshell
- Very fast CPU/GPU, 8 or 16GB RAM
- Dual display capable
- Fast PCIe 3.0+2.0 and USB 3.0
Use Cases
- Software development
- Open source CAD/media work
- OpenGL 3.3 gaming and emulation
Drawbacks
- Binary DDR and GPU firmware
MNT Pocket Reform RK3588 Upgrade Bundle
An Upgrade Bundle to Your MNT Pocket Reform.
With this upgrade bundle, MNT Pocket Reform has more power, more storage, and more bandwidth.
Our Most Powerful CPU Module

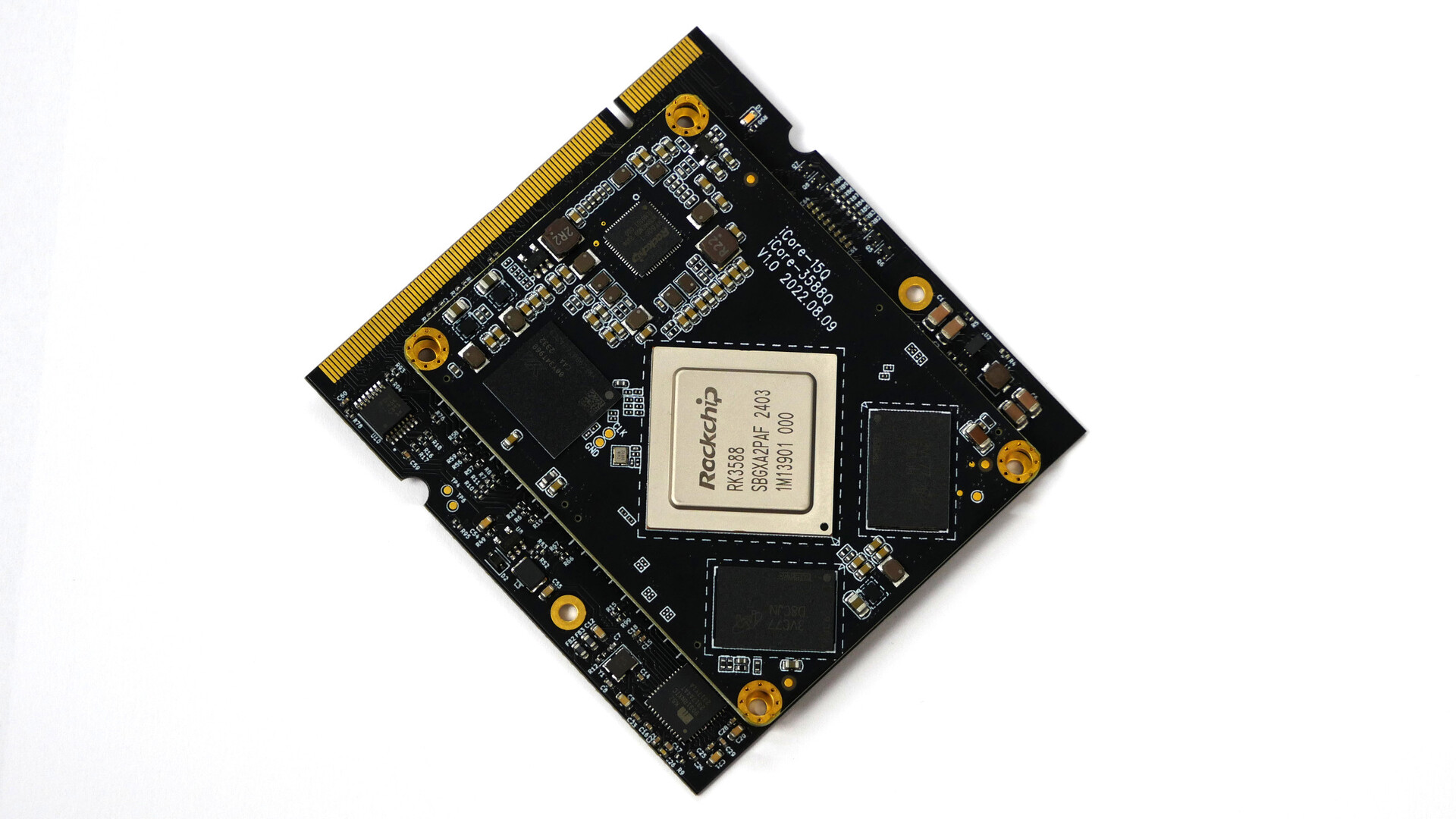

MNT RCORE (Rockchip RK3588)
MNT RCORE with RK3588 is the most performant octa-core Processor Module option for MNT Pocket Reform and the right choice if you desire the maximum in CPU and GPU performance as well as 8 or 16GB of RAM. The CPU features 8 cores: 4x fast Cortex-A76 and 4x efficient Cortex-A55. The integrated ARM Mali G610 MP4 GPU delivers OpenGL/ES 3.3 with the open source Panthor driver, with Vulkan support.

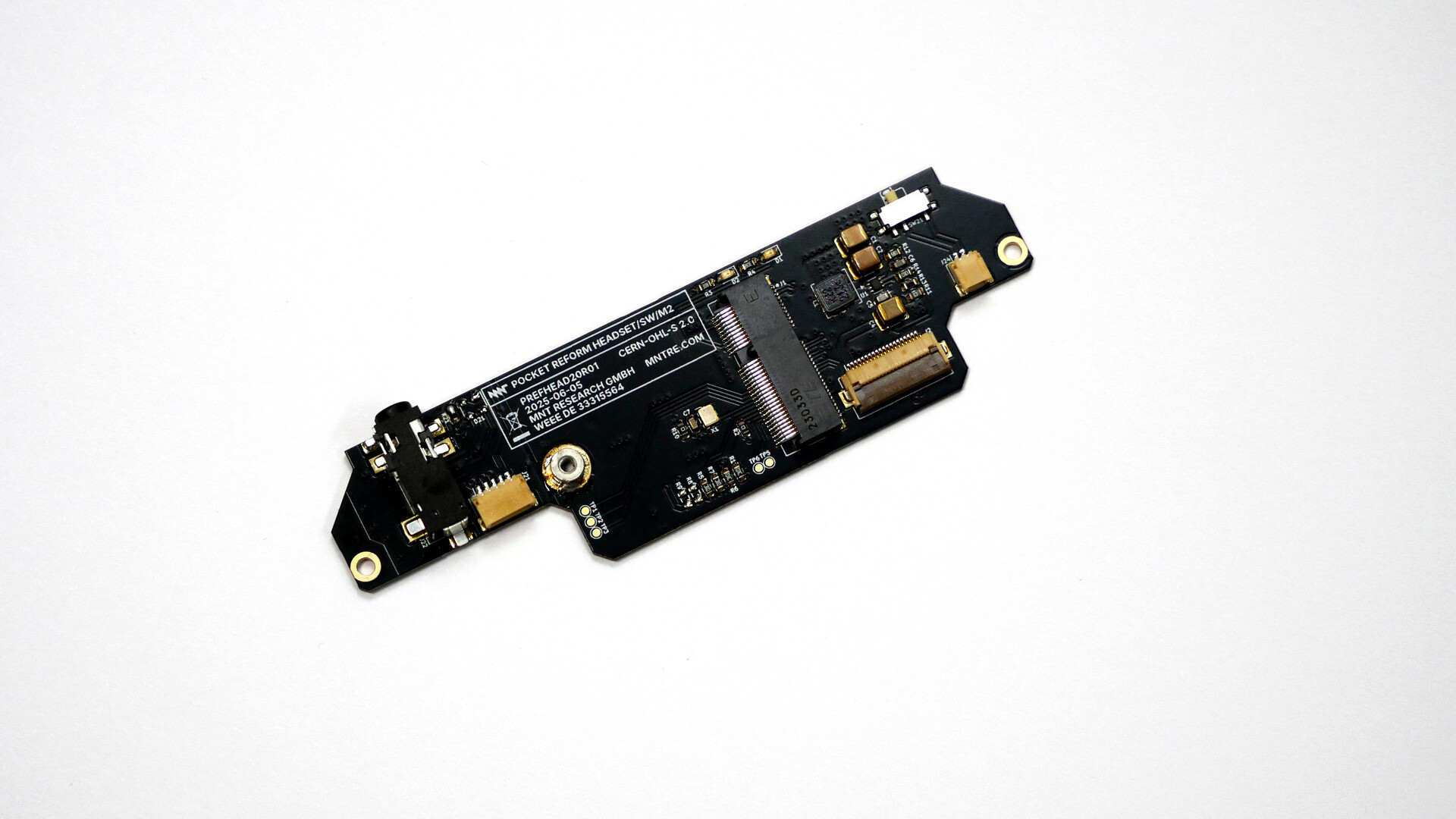

RK3588 doesn't include any Wi-Fi out of the box. We recommend selecting the optional Intel AX210 Wi-Fi/Bluetooth module for Wi-Fi 6E and BT 5.3 connectivity (great Linux support). For this purpose, we developed a custom Wi-Fi/BT carrier board that adds a third M.2 E-key slot to your Pocket Reform.
You can choose between the following options:

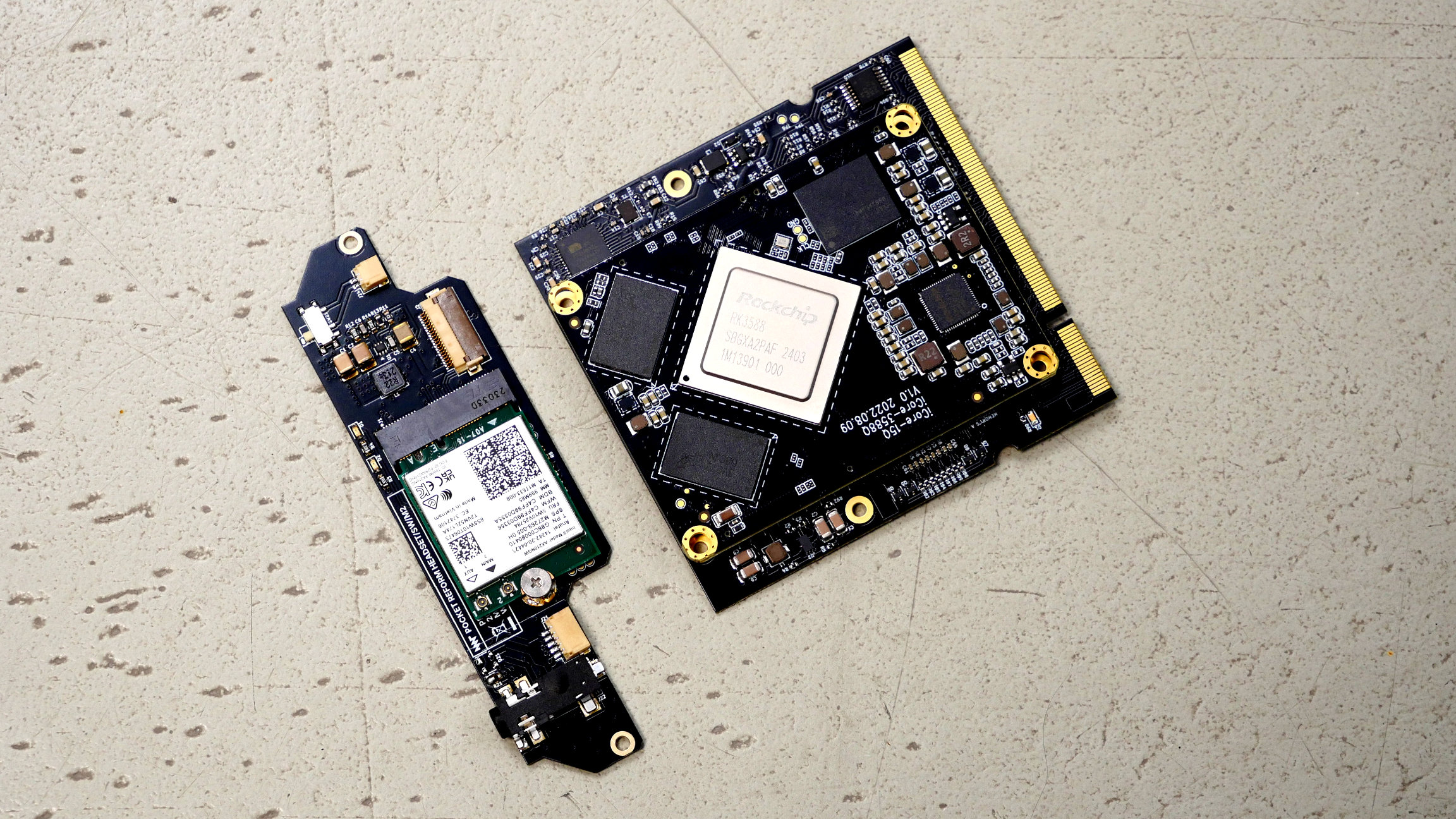

- RCORE with RK3588 (8 GB RAM) + Wi-Fi/BT Carrier Board
- RCORE with RK3588 (16 GB RAM) + Wi-Fi/BT Carrier Board
- RCORE Carrier Board + Wi-Fi/BT Carrier Board only (This is the RCORE 1.0 to 2.0 Upgrade. Please select this if you already have version 1.0—you can reuse your existing RK3588 processor + RAM module.)
Benchmarks
- CPU RK3588 (7z b)
- CPU A311D (7z b)
- CPU Raspberry Pi CM4 (7z b)
- CPU i.MX8MQ (7z b)
- GPU RK3588 (glmark2-es2)
- GPU A311D (glmark2-es2)
- GPU Raspberry Pi CM4 (glmark2-es2)
- GPU i.MX8MQ (glmark2-es2)
In the Box
- RCORE with RK3588 (8 or 16 GB RAM) or RCORE Carrier Board only
- Wi-Fi/BT Carrier Board
- Optional: Intel AX210 Wi-Fi/Bluetooth module for Wi-Fi 6E and BT 5.3 connectivity (great Linux support)
- Optional: NVMe SSD Storage (M.2) 1 TB
Support
US customers: Please note that tariffs will apply.
- Manuals and Downloads
- iFixit Repair Guide
- For more details on features of MNT Pocket Reform, read our News article.
- For questions, updates and feedback, join the MNT Community or contact our customer support.
- Head over to our FAQs if you have any questions regarding payment methods, import fees and warranty.
