Wi-Fi Card + Antenna
Improve Reception and Stability with the Wi-Fi Card + Antenna Bundle for MNT Pocket Reform.
With this bundle, MNT Pocket Reform has improved Wi-Fi reception and stability when using the i.MX8M Plus or A311D (CM4 Banana Pi) Processor Module. Our improved back plate is required for good reception.
Note: This bundle is only compatible with MNT Pocket Reform and is not needed if you run Pocket Reform with the RK3588 Processor Module!
Detailed Specs
- Card Model: AsiaRF M27612-BU3
- Wi-Fi Chip: MediaTek MT7612U (requires firmware-mediatek package)
- Interface: M.2 B key (USB 2.0/3.0 signals). Works only in the WWAN slot of MNT Pocket Reform (USB 2.0 only).
- Standards: 802.11a/b/g/n/ac (Wi-Fi 5)
- Antenna Model: Ezurio EFB2455A3S-20MHF1 (Datasheet)

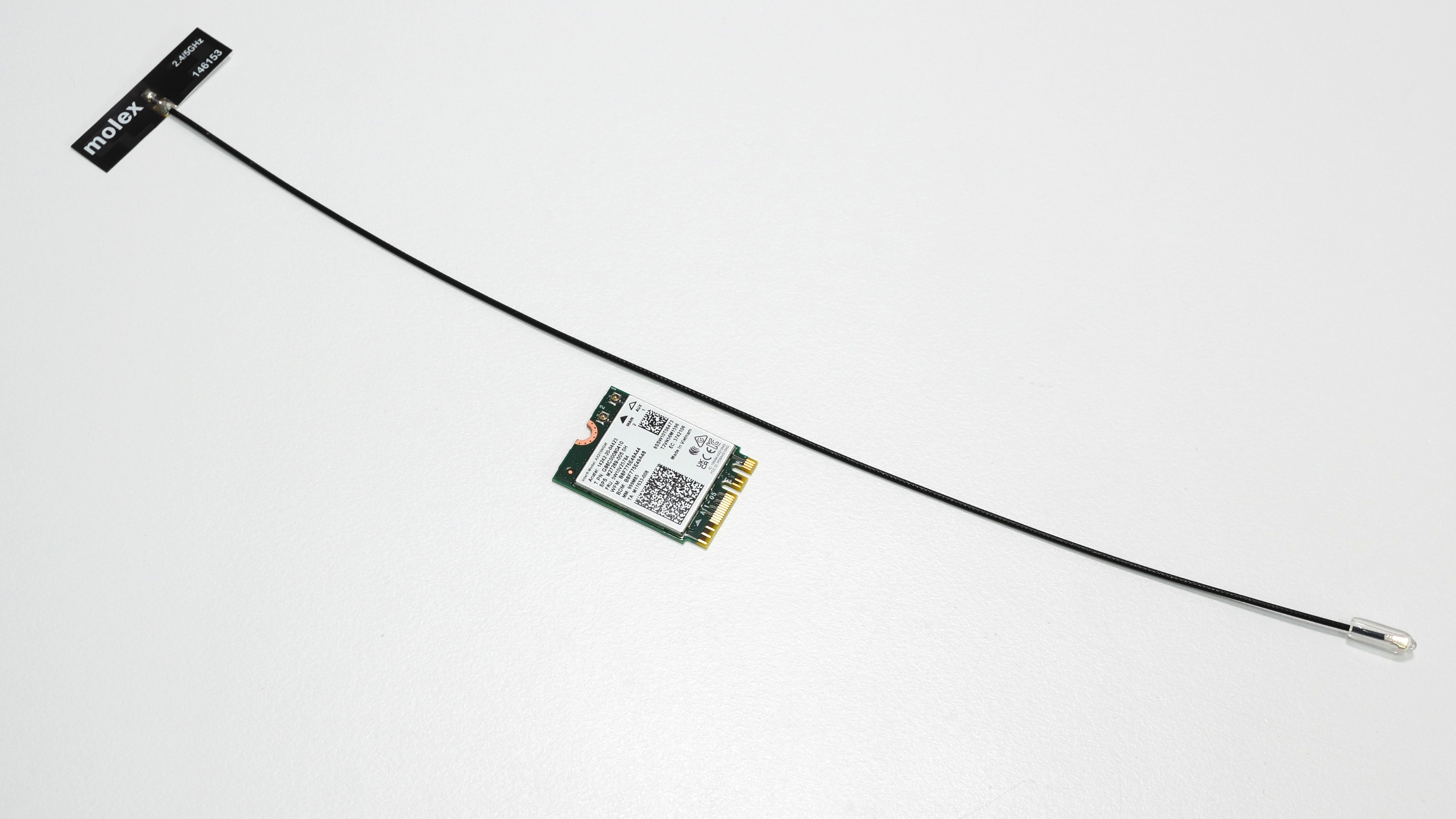

In the Box
- AsiaRF Wi-Fi card with MT7612U chipset
- Ezurio FlexPIFA antenna
Support
- Manuals and Downloads
- For more details on features of MNT Pocket Reform, read our News article.
- For questions, updates and feedback, join the MNT Community or write us an email.
- Head over to our FAQs if you have any questions regarding payment methods, import fees and warranty.
Related Products
-
MNT Pocket Reform €1,050.00
-
MNT Pocket Reform Operator Handbook €19.00
-

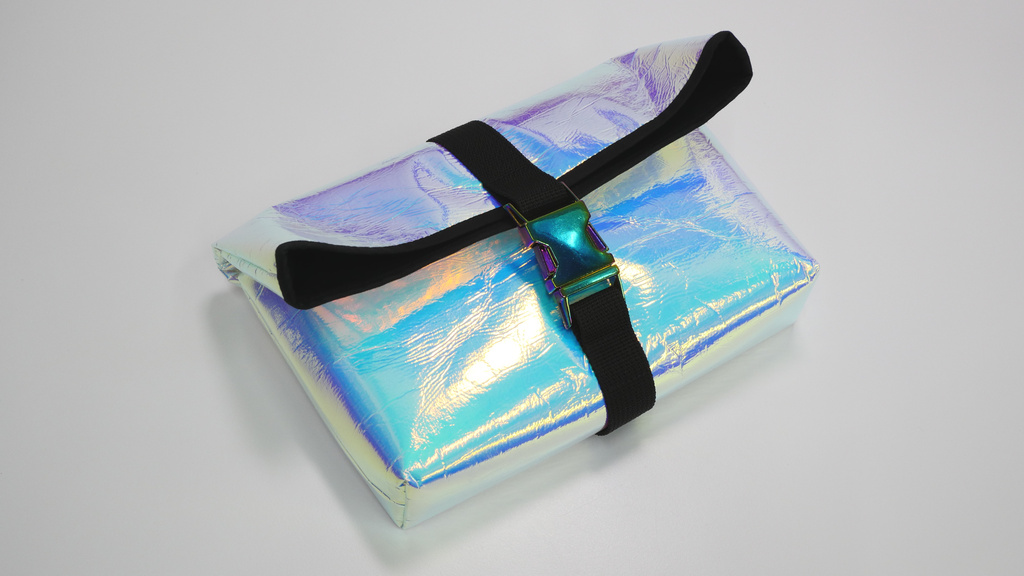

MNT Pocket Reform Sleeve €100.00
-
