MNT Pocket Reform Keyboard PCB 2.0

Switches, or No Switches, That Is the Question.

Usually our mechanical keyboards come with non-hot swappable key switches and keycaps, but we know many of you like to customize. Here's what we came up with.

Switch Options

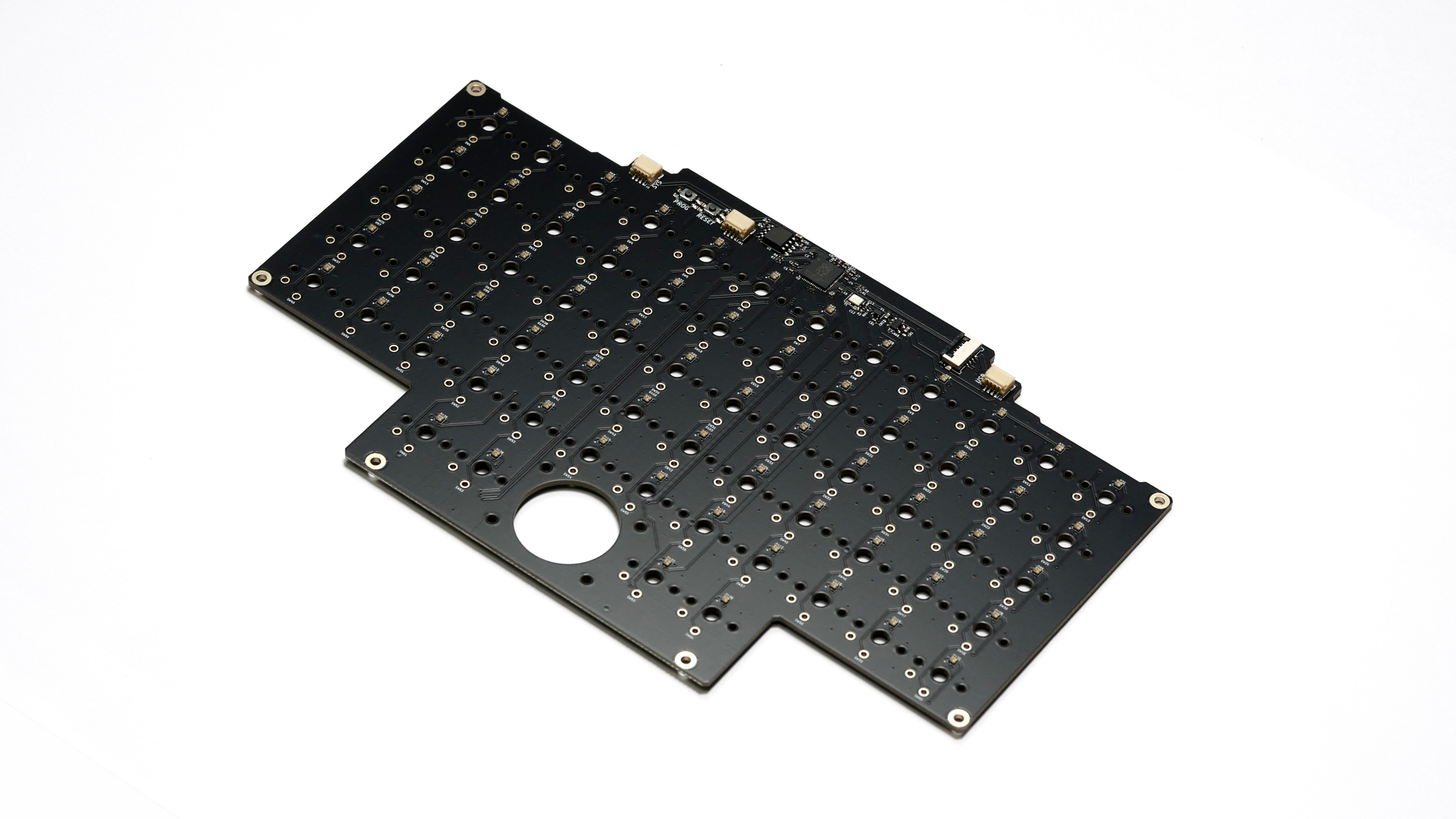

  • No key switches, just the PCB

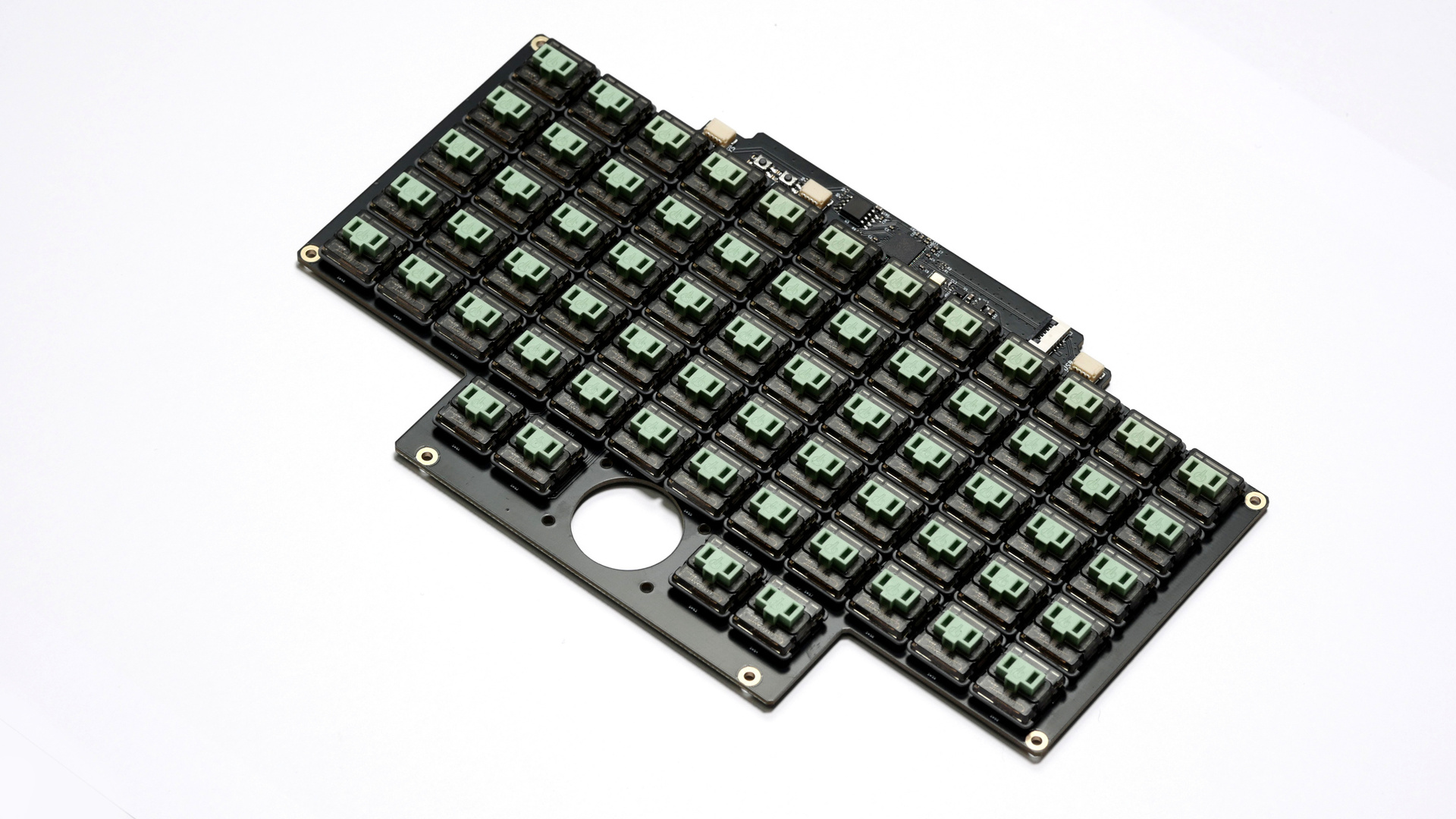

  • With key switches:
    • Kailh Choc Red Pro (linear)
    • Kailh Choc Brown (tactile)
    • Kailh Choc White (clicky)

Keycap Options

  • No keycaps

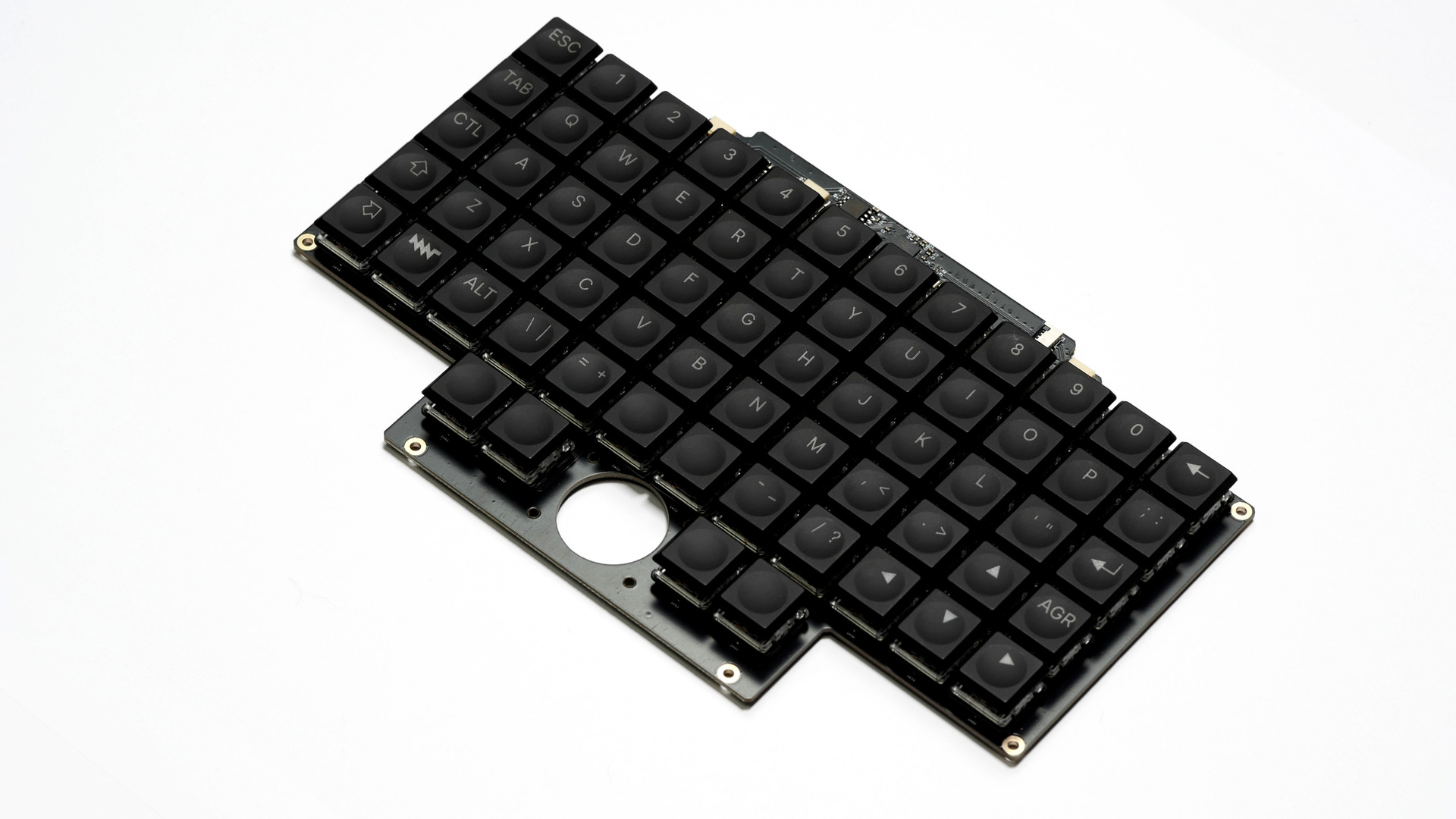

  • QWERTY keycaps (black, shine-through ABS+PU, laser-engraved, 1U (size), produced by FKcaps)

Note: In case you'd like to use your own keycaps, be aware that regular Choc keycaps won't fit, as the key switches are closer together than usual to achieve the compact size of the keyboard.

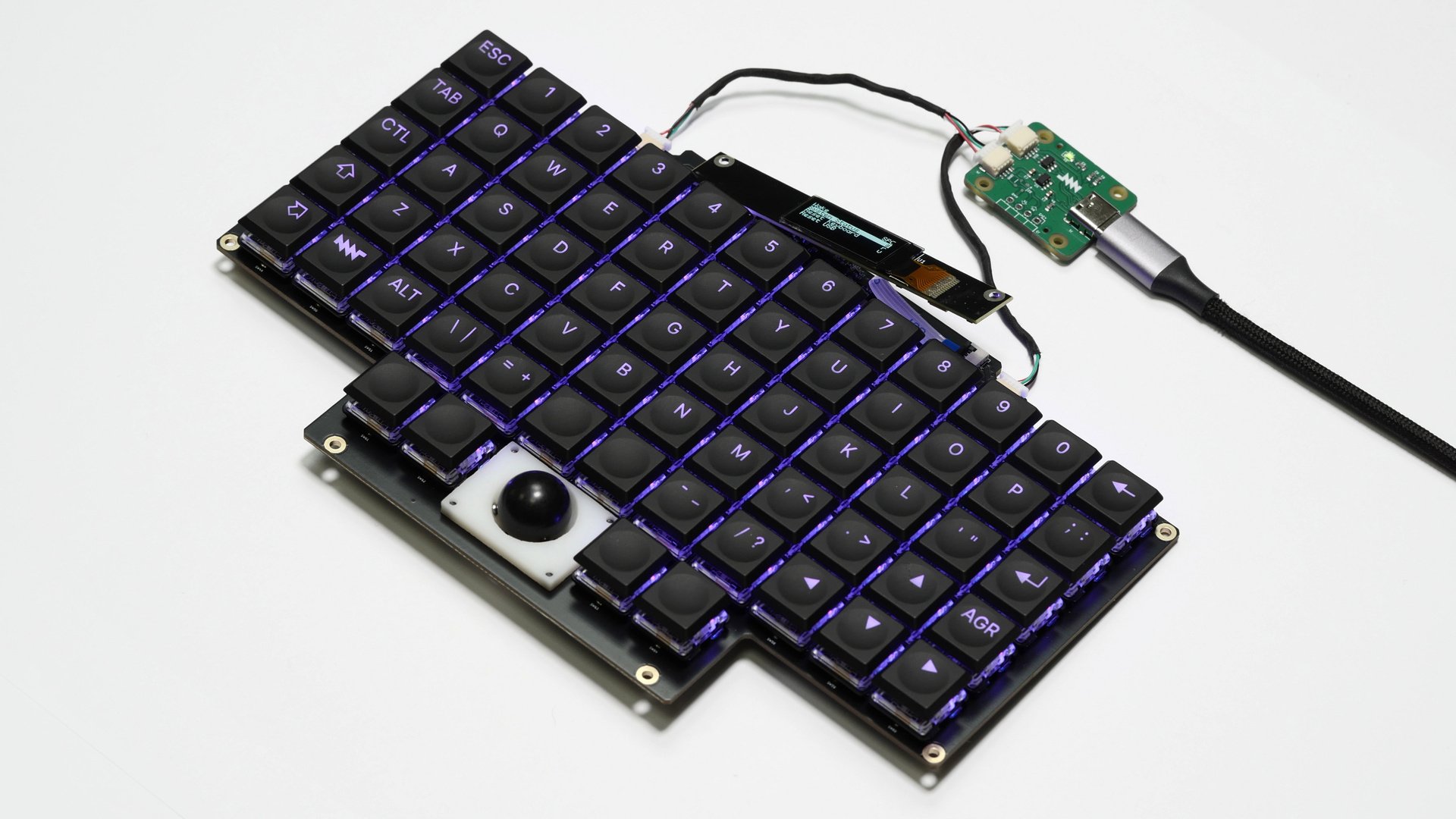

A case design is in the works, so you'll be able to use the Pocket Reform keyboard as a portable standalone keyboard in the future.

Features

  • As an upgrade for your MNT Pocket Reform: overhauled 2.0 PCB design with improved reliability
    • Improved RP2040 crystal, decoupling and USB layout
    • Can save energy by gating the LED power completely when Pocket Reform is off/in standby
    • Fixed flash programming switch
    • New SWD debug header (4-pin JST-SH)
  • Fully Open Source Hardware design with all KiCAD sources published under CERN OHL, and open Source firmware
  • Size: 19.5cm x 11.5cm

In the Box

  • 1x MNT Pocket Reform Keyboard (populated)
  • The keyboard PCB is optionally equipped with:
    • 64 soldered Kailh Choc Red Pro (linear) key switches
    • 64 soldered Kailh Choc Brown (tactile) key switches
    • 64 soldered Kailh Choc White (clicky) key switches
    • 64 QWERTY keycaps
